Specification

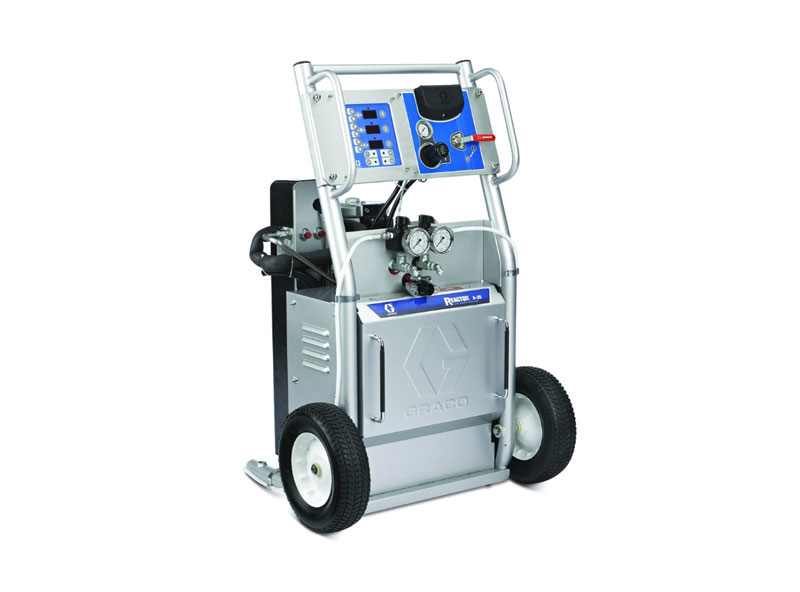

| Reactor A-25 Plural Component Proportioner | |
| Maximum Fluid Working Pressure |
14 MPa, 138 bar
|
| Maximum Air Supply Pressure |
9 bar, 0.9 MPa
|
| Maximum Air Working Pressure |
550 kPa, 5.5 bar
|
| Pressure Ratio |
25:1
|
| Air consumption with 02 tip at 1500 psi stall pressure |
0.8m³/min
|
| Machine Maximum Power with hose |
9000 Watts
|
| Voltage Requirement (50/60 Hz), (230 V Nominal: 195-253 VAC), (380 V Nominal: 338-457 VAC) |
230 V, 1 Phase, 230 V, 3 Phase (Delta), 380 V, 3 Phase (WYE 220 V to Neutral)
|
| Amperage Requirement (Full Load Peak)* |
40 amps @ 230 V, 1 Phase, 32 amps @ 230 V, 3 Phase, 18.5 amps @ 380 V, 3 Phase
|
| Maximum Heater Fluid Temperature |
88°C
|
| Maximum Hose Fluid Temperature |
82°C
|
| Maximum Ambient Temperature |
49°C
|
| Maximum Output |
11.4 kg/min
|
| Output Per Cycle (A and B) |
0.095 ltr/cycle
|
| Heater Power |
6000 Watts
|
| Hose Power |
2790 Watts
|
| Sound Pressure (see NXT air motor manual) |
70.2 dB(A)
|
| Sound Power (see NXT air motor manual) |
80.1 dB(A)
|
| Viscosity Range |
250–1500 centipoise (typical)
|
| Maximum Fluid Inlet Pressure |
2.1 MPa, 21 bar or 15% of output pressure
|
| Fluid Inlet/Strainer Filter |
20 mesh standard
|
| Air inlet Filter Mesh |
40 Micron
|
| Component B (Resin) Inlet |
3/4 npt(f) swivel
|
| Component A (Isocyanate) Inlet |
3/4 npt(f) swivel
|
| Recirculation/Block Hose Connections |
Iso (A) side: #5 JIC (m); Resin (B) side: #6 JIC (m)
|
| Maximum Heated Hose Length *** |
210 ft of 3/8 ID
|
| Weight |
140.6 kg
|
| Wetted Parts |
Carbon steel, stainless steel, chrome, aluminum, Fluoroelastomer, PTFE, nylon
|
| *Full load amps with all devices operating at maximum capabilities with 210 ft (64.1 m) of hose. ***210 ft (64 m) of heated hose will produce the maximum allowable heat capacity. 310 ft (94 m) of heated hose may be used, but will have 25% less heat capacity. | |
