ToughTek F680e ToughTek F680e
หมวดหมู่สินค้า: เครื่องพ่นปูน

20 สิงหาคม 2016

ผู้ชม 726 ผู้ชม

Specification

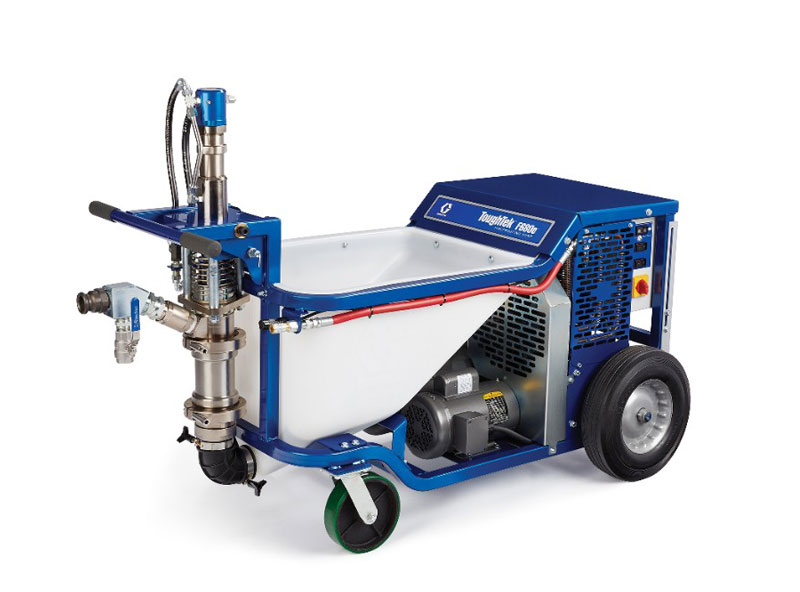

ToughTek F680e Fireproofing Pump

Maximum Fluid Working Pressure

500 psi

Stroke Length

4.75 in.

Maximum pump speed (Do not exceed maximum recommended speed of fluid pump to prevent premature pump wear)

60 cycles per minute

Weight (empty)

625 lb

Wetted Parts

Stainless steel, plated steel, carbide, urethane, PTFE, UHMWPE, LLDPE, aluminum, solvent-resistant o-rings

Hydraulic Tank Capacity

1.25 gallons

Oil Specification

Graco Hydraulic Oil, ISO 46 169236 (5 gallon / 18.9 liter) or 207428 (1 gallon / 3.8 liter)

Maximum Pump Line Speed

60 Hz

60 cycles per minute

50 Hz

50 cycles per minute

Inlet/Outlet Sizes

Fluid Inlet Size

3 in.

Fluid Outlet Size

1.5 in. npt(f) with 1.5 in. cam and groove fitting

Hose Requirements

Minimum Pressure

500 psi

Minimum Hose Diameter

1 in.

Minimum Hose Length

25 ft

Air Compressor Performance

Maximum Working Air Pressure

85 psi

Maximum Air Compressor Output

10 cfm at 40 psi

Sound Pressure, measured at 3.1 ft (1 m) per ISO 3744

Models 24Y500, 24Y504

82.8 dB(A)

Models 24Y502, 24Y506

80.2 dB (A)

Sound Power, measured at 3.1 ft (1 m) per ISO 3744

Models 24Y500, 24Y504

93.1 dB(A)

Models 24Y502, 24Y506

90.9 dB (A)

Operating Ambient Temperature

Temperature

32° F to 120° F

Dimensions

Height

46 in.

Width

33 in.

Length

62.25 in.

Weight

Models 24Y500, 24Y504

625 lb

Models 24Y502, 24Y506

515 lb
